ALPHANUMERIC DISPLAY
LED Digital Display is a numeric display component made with LEDs. It is commonly used in digital clocks, dashboards, and control panels to show numerical information.
  • Information
  • Specification Sheet
  • Repated Applications
  • ALPHANUMERIC DISPLAY / 0.54'' DUAL ALPHANUMERIC

    test

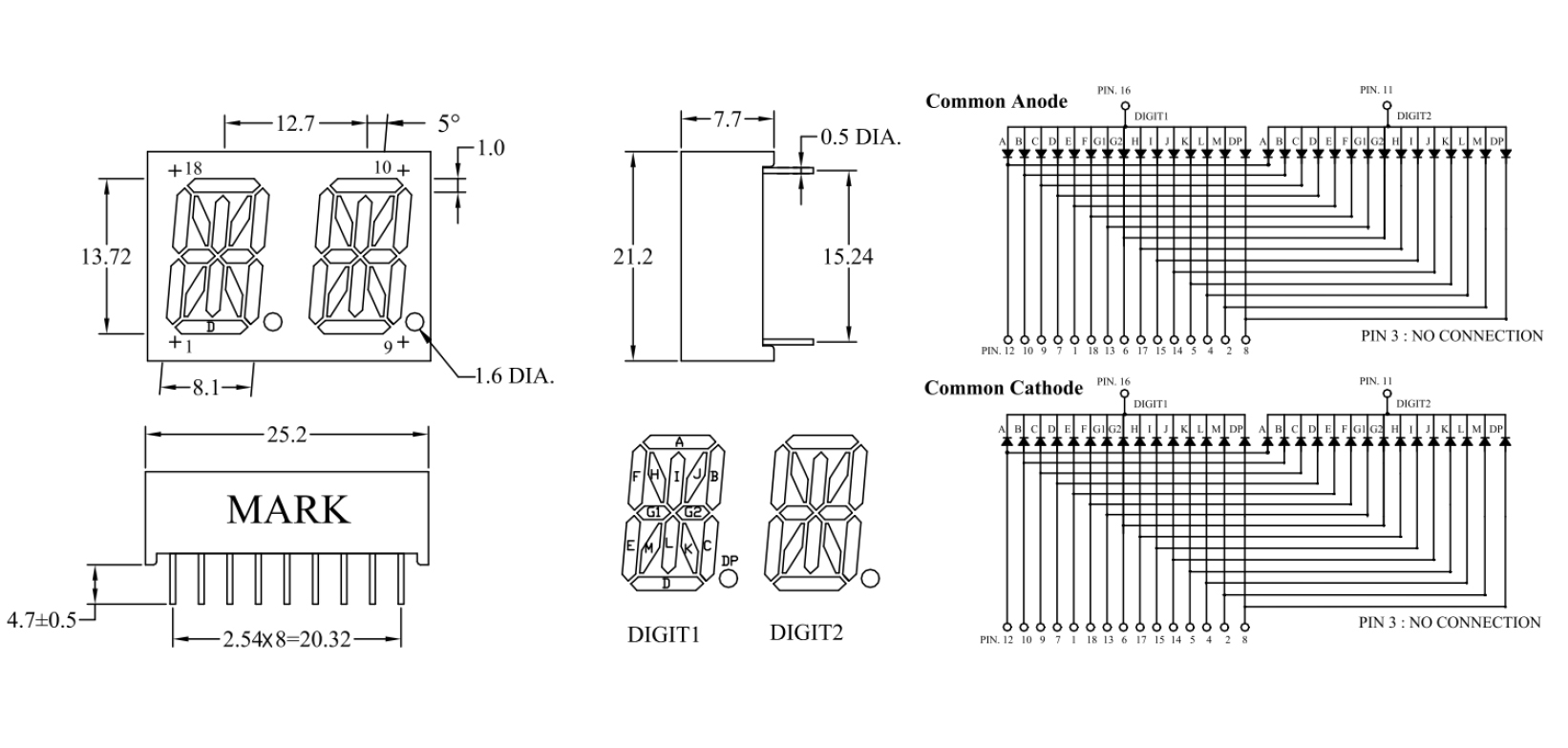

    Dimension (Unit: mm)

    test

    Specification Sheet

    PART NUMBERS

    COLOR

    Wavelength (nm)

    Vf(V) If=20mA TYP.

    Vf(V) If=20mA MAX.

    IV(mcd) If=10mA MIN.

    IV(mcd) If=10mA TYP.

    ACTION

    LA5422-11-UR96

    Yellow green

    570

    1.9

    2.4

    15.4

    35

    Add to consult list

    LA5432-11-UR91

    Yellow

    589

    1.9

    2.4

    22

    45

    Add to consult list

    LA5412-11-UR91

    Hyper red

    625

    1.9

    2.4

    22

    45

    Add to consult list

    LA5412-11-UR93

    Deep Red

    639

    1.9

    2.4

    15.4

    35

    Add to consult list
    Drag the table to view the full information.
